Remote keyless entry
➀ Lock button
➁ Unlock button
➂ Panic button (if equipped)
➀ Lock ( )
All doors are locked if the lock button
is pressed.
➁ Unlock ( )
Driver’s door is unlocked if the
unlock button is pressed once. All
doors are unlocked if the unlock
button is pressed twice within 4
seconds.
After pressing this button, the
doors will be locked automatically
unless you open them
within 30 seconds.
➂ Panic ( , if equipped) The horn sounds and hazard warning lights will flash for about 30 seconds if this button is pressed. To stop the horn and lights, press any button on the transmitter.
NOTICE
The transmitter will not work if any
of following occur:
• The ignition key is in ignition
switch.
• You exceed the operating distance limit (about 10 m [30 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter.
When the transmitter does not work correctly, open and close the door with the ignition key. If you have a problem with the transmitter, contact an authorized Kia Dealer.
NOTICE
Keep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufacturer
vehicle warranty.
Operational distance may vary depending upon the area the transmitter is used in. For example, if the vehicle is parked near police stations, government and public offices, broadcasting stations, military installations, airports, or transmitting towers, etc.
This device complies with
Industry Canada Standard RSS-
210. Operation is subject to the following
two conditions:
1. This device may not cause interference,
and
2. This device must accept any interference,
including interference that
may cause undesired operation of
the device.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.
Battery replacement
Transmitter uses a 3 volt lithium battery
which will normally last for several
years. When replacement is necessary,
use the following procedure.

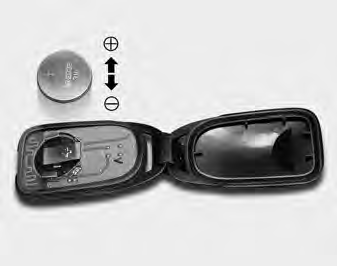

1. Insert a slim tool into the slot and gently pry open the transmitter center cover (➀).
2. Replace the battery with new one.
When replacing the battery, make sure the battery positive “+” symbol faces up as indicated in the illustration.
3. Install the battery in the reverse order of removal.
For replacement transmitters, see an Authorized Kia dealer for reprogramming.
NOTICE
The keyless entry system transmitter
is designed to give you years of
troublefree use, however it can malfunction
if exposed to moisture or
static electricity. If you are unsure
how to use your transmitter or
replace the battery, contact an
authorized Kia dealer.
NOTICE
• Using the wrong battery can cause
the transmitter to malfunction. Be
sure to use the correct battery.
• To avoid damaging the transmitter, don't drop it, get it wet, or expose it to heat or sunlight.
CAUTION
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose the battery according to your local law(s) or regulation.
