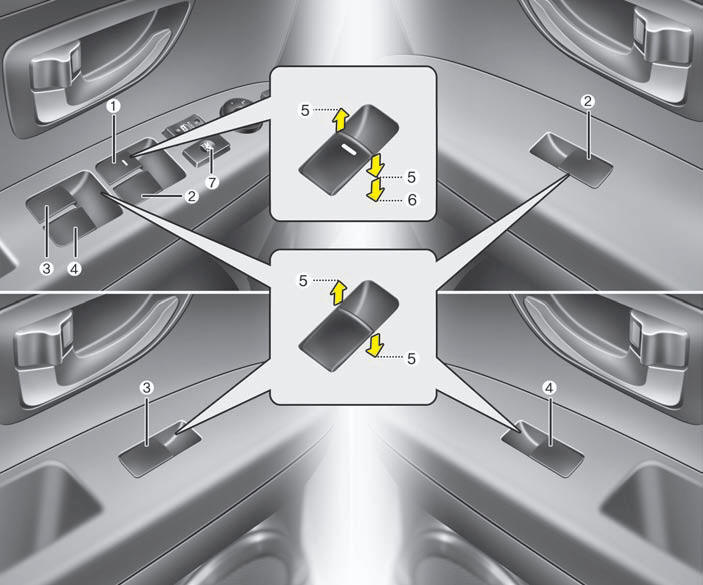

Windows
(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window down (Driver’s window)
(7) Power window lock switch
NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch that controls the door's window. The driver has a power window lock button which can block the operation of passenger windows. The power windows can be operated for approximately 30 seconds after the ignition key is removed or turned to the ACC or LOCK position. However, if the front doors are opened, the power windows cannot be operated even within the 30 second period.
NOTICE
While driving with the rear windows
down or with the sunroof (if equipped)
in an open (or partially open) position,
your vehicle may demonstrate a wind
buffeting or pulsation noise. This noise
is a normal occurrence and can be
reduced or eliminated by taking the following
actions. If the noise occurs with
one or both of the rear windows down,
partially lower both front windows
approximately one inch. If you experience
the noise with the sunroof open,
slightly reduce the size of the sunroof
opening.

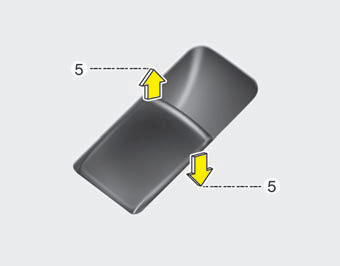

Window opening and closing The driver’s door has a master power window switch that controls all the windows in the vehicle.
To open or close a window, press down or pull up the front portion of the corresponding switch to the first detent position (5).

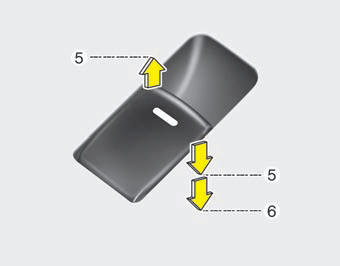

Auto down window (if equipped)
(Driver’s window)
Pressing the power window switch
momentarily to the second detent position
(6) completely lowers the driver’s
window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, momentarily pull the switch in
the direction opposite of the window’s
movement.

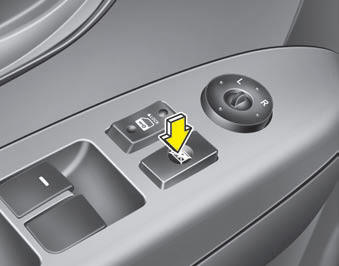

Power window lock button • The driver can disable the power window switches on the passenger doors by pressing the power window lock button located on the driver’s door to the LOCK position (pressed).
• When the power window lock button is in the LOCK position (pressed), the driver’s master control cannot operate the passenger door power windows.
CAUTION
• To prevent possible damage to
the power window system, do not
open or close two windows or
more at the same time. This will
also ensure the longevity of the
fuse.
• Never try to operate the main switch on the driver's door and the individual door window switch in opposite directions at the same time. If this is done, the window will stop and cannot be opened or closed.
WARNING - Windows
• NEVER leave the ignition key in
the vehicle.
• NEVER leave any child unattended in the vehicle. Even very young children may inadvertently cause the vehicle to move, entangle themselves in the windows, or otherwise injure themselves or others.
• Always double check to make sure all arms, hands, head and other obstructions are safely out of the way before closing a window.
• Do not allow children to play with
the power windows. Keep the driver’s
door power window lock
button in the LOCK position
(pressed). Serious injury can
result from unintentional window
operation by the child.
• Do not extend any head or arms outside the window while driving.
